plastic - wall mounted combination units

BALS-Prd.-Nr 899899
EAN/Piece 4024941230995
Packaging Unit 1   Piece
 to documents downloads

BALS-Prd.-Nr 899899
EAN 4024941230995
Product category VARIABOX - XXL Plus
Specification/Norm DIN EN 61439-2
Protection degree IP54
Colour of appliance Housing bottom simular black RAL 9017
Housing top grey RAL 7035

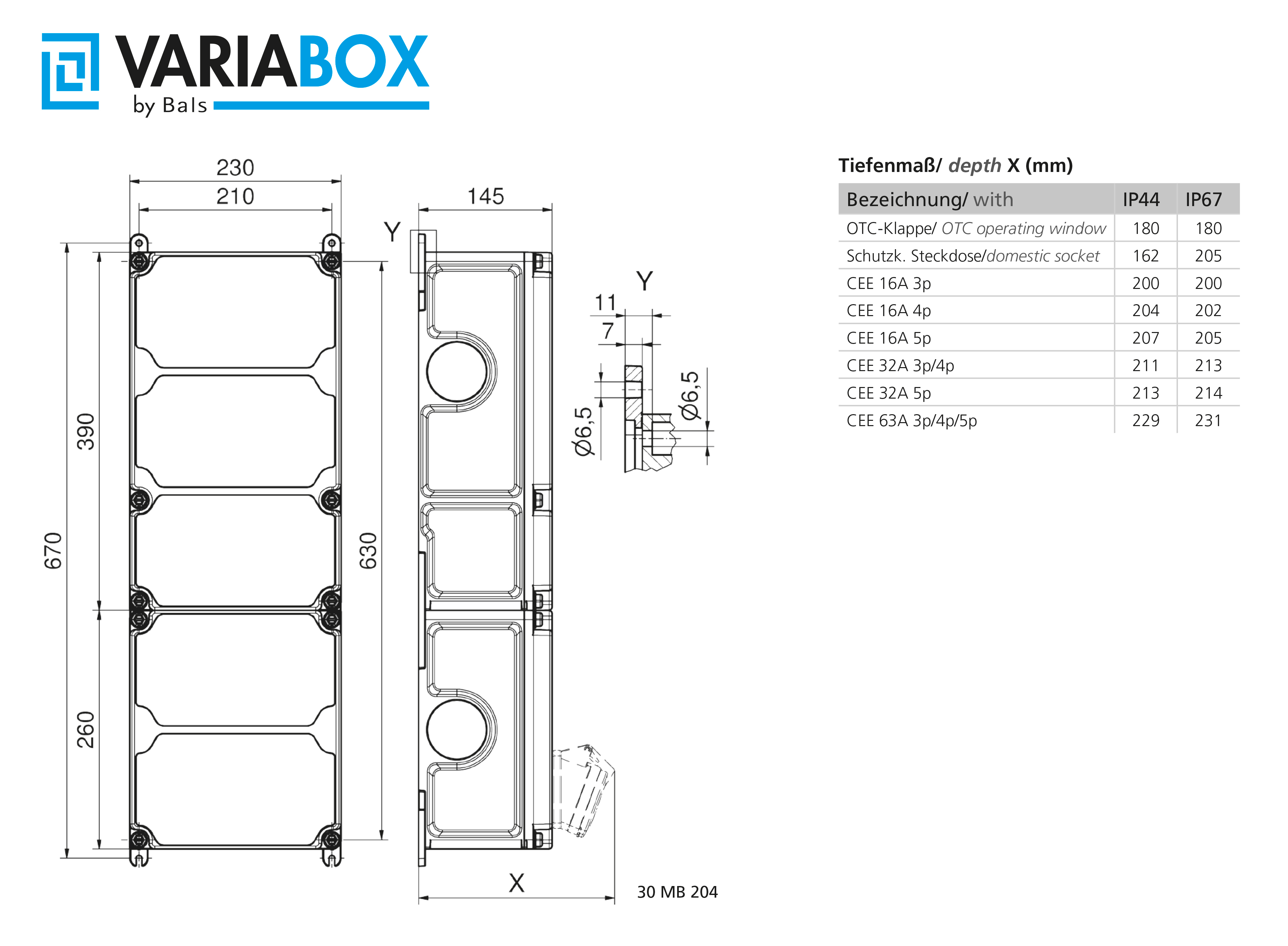

Height 650mm
Width 230mm
Depth 145mm
RDF factor 0.77
Rated current InA 63
Weight/pcs 9.038 kg / Piece
Packaging Carton
Content amount 1 ST
EAN 4024941230995
Length 690 mm
Width 270 mm
Height 255 mm
Weight 9.452 kg
Volume 47,506.5 ccm
Version ETIM-9
Class EC000379 - CEE socket outlet combination (IEC 60309)
CEE socket outlet 16 A 1x16A5p400V
CEE socket outlet 32 A 1x32A5p400V
CEE socket outlet 63 A 1x63A5p400V
CEE socket outlet 125 A None
Number of socket outlets with protective contact CEE 7/3 (type F) 4
Number of socket outlets Danish standard (earthing pin) 0
Number of socket outlets Swiss standard type 13 0
Number of socket outlets Swiss standard type 15 0
Number of socket outlets Swiss standard type 23 0
Number of socket outlets Swiss standard type 25 0
Other fixtures and/or empty locations 0
Protection Overcurrent switch
Earth leakage switch Earth leakage switch with IFN 30 mA (standard)
Number of miniature circuit breakers (MCB) 6
Housing material Plastic
Power supply/connection possibility 2 cables (ring line)
Type of mains connection M40
Cable length 0
Handling Wall mounting
Degree of protection (IP) IP54
Military model FALSE
Colour Grey
Height 650
Width 230
Depth 145
  • Further technical article descriptions on request.
