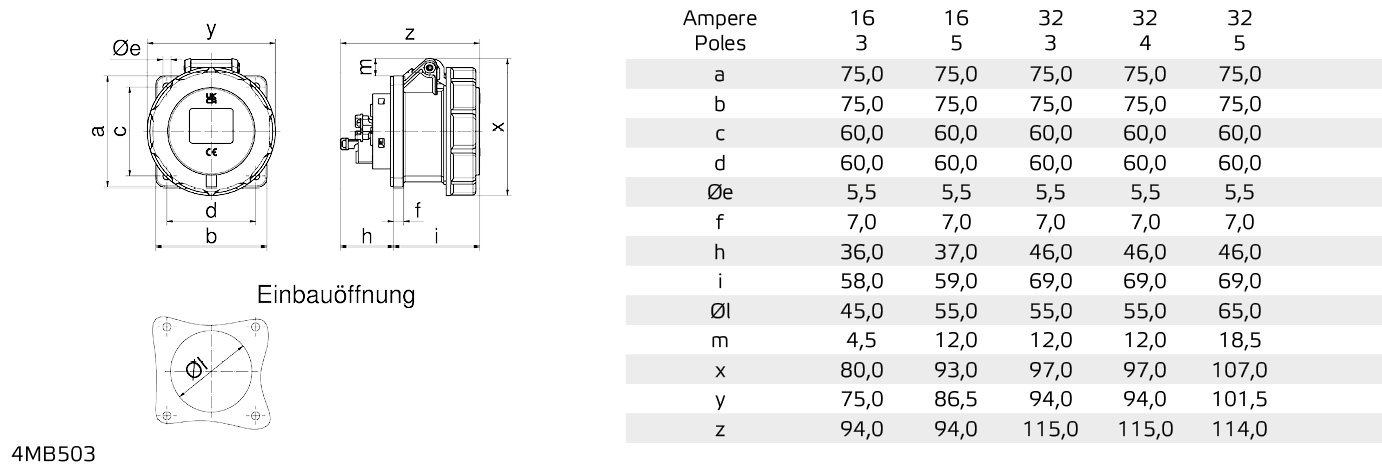

panel mounting socket outlet, straight - flange 75x75, fixing centers 60x60
| BALS-Prd.-Nr | 137341 | |
|---|---|---|
| EAN/Piece | 4024941379328 | |
| Packaging Unit | 10 Piece | |
|
|
to documents downloads
|
|
| BALS-Prd.-Nr | 137341 |
| EAN | 4024941379328 |
| Product category | Panel mounting socket outlet INNOLINQ QUICK-CONNECT straight |
| Current | 16A |
| Number of poles | 3p |
| Arangement of phases | 2P+PE |
| Position of earth contact | 6 h |
| Voltage | 200 - 250V~ |
| Frequency | 50/60Hz |
| Protection degree | IP67 |
| Colour code | blue RAL 5015 |
| Colour of appliance |
Hinged lid blue RAL 5015 Enclosure grey RAL 7035 Bayonet ring grey RAL 7035 |
| Connection design | screwless spring terminals with KONTEX-ULTRA contact |
| Maximum conductor size | 4,0 qmm |
| Cable entry | other |
| Height | 81mm |
| Width | 75mm |
| Depth | 90mm |
| Flange size vertical in mm | 75mm |
| Flange size horizontal in mm | 75mm |
| Drill hole dist. vertical mm | 60mm |
| Drill hole dist. horizontal mm | 60mm |
| Material of enclosure | Polyamide |
| Contacts |
The contact carrier is made of polyamide The contacts are brass |
| This product is without any lead |
| Weight/pcs | 0.0 kg / Piece |
| Packaging | Bag |
| Content amount | 1 ST |
| EAN | 4024941379328 |
| Length | 90 mm |
| Width | 75 mm |
| Height | 81 mm |
| Weight | 0.001 kg |
| Volume | 546.75 ccm |
| Packaging | Carton |
| Content amount | 10 ST |
| EAN | 4024941398152 |
| Length | 275 mm |
| Width | 175 mm |
| Height | 137 mm |
| Weight | 0.125 kg |
| Volume | 5,737.5 ccm |
| Version | ETIM-9 |
| Class | EC001317 - Panel-mounted CEE socket outlet (IEC 60309) |
| IEC-amperage | 16 |
| Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
| Number of poles | 3 |
| Clock hour position | 6 |
| Identification colour | Blue |
| RAL-number | 5015 |
| Degree of protection (IP) | IP67 |
| Connection system | Screw less terminal |
| Insert direction | Straight |
| Material | Plastic |
| Military model | FALSE |
| Flange size vertical | 75 |
| Drill hole distance vertical | 60 |
| Drill hole distance horizontal | 60 |
- Further technical article descriptions on request.
