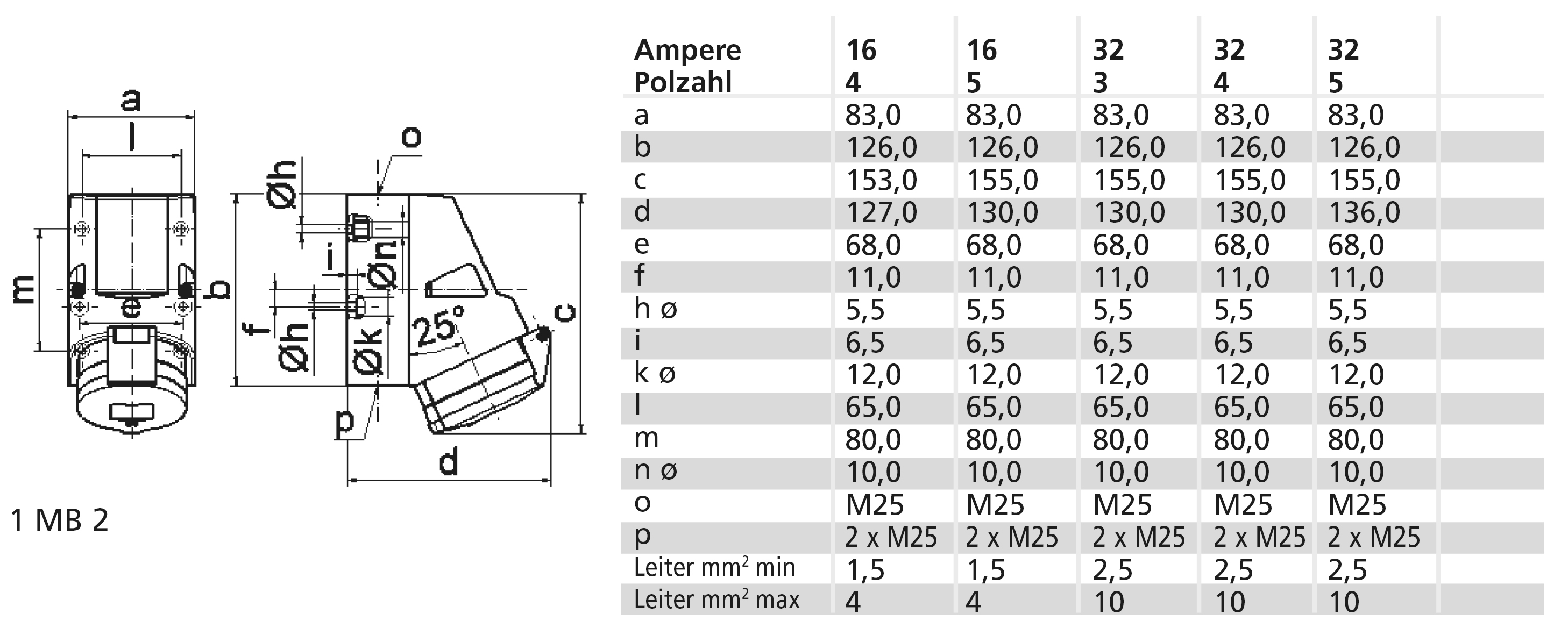

housing dimensions 126x83

wall mounting socket outlet - housing dimensions 126x83

BALS-Prd.-Nr 11193
EAN/Piece 4024941111935
Packaging Unit 10   Piece
 to documents downloads


Product description

BALS-Prd.-Nr 11193
EAN 4024941111935
Product category Wall mounting socket outlet
Current 32A
Number of poles 3p
Arangement of phases 2P+PE
Position of earth contact 2 h
Voltage > 50V~
Frequency > 300 - 500Hz
Protection degree IP44
Colour code green RAL 6002
Colour of appliance Hinged lid green RAL 6002
Housing bottom grey RAL 7035
Housing top grey RAL 7035
Collar grey RAL 7035
Connection design with screw terminal
Maximum conductor size 10,0 qmm
Cable entry 1xM25 top, 2xM25 bottom
Height 156mm
Width 83mm
Depth 130mm
Dimension of enclosure 126x83 mm (HxW)
Material of enclosure Polyamide
Contacts The contact carrier is made of polyamide
The contacts are brass

Additional technical information

The cable entry is one at top open and two at bottom closed
Lower part of housing rotatable by 180°
4 cut out fixing holes in the lower part of housing

Logistics data

Weight/pcs 0.37 kg / Piece
Packaging Carton
Content amount 10 ST
EAN 4024941840927
Length 330 mm
Width 216 mm
Height 260 mm
Weight 3.926 kg
Volume 17,062.5 ccm

ETIM

Version ETIM-9
Class EC001321 - CEE socket outlet (IEC 60309)
Model Surface mounted
IEC-amperage 32
Number of poles 3
Voltage according to EN 60309-2 50-500 V (>300-500 Hz) green
Clock hour position 2
Identification colour Green
RAL-number 6002
Degree of protection (IP) IP44
Connection system Screwed terminal
Cable entry Gland nut
Material Plastic
Type of fastening Inner lying mounting
Insulated mounting TRUE
Military model FALSE
  • Further technical article descriptions on request.
