with cable gland, for cable diameter up to 24,5 mm

plug low voltage - with cable gland, for cable diameter up to 24,5 mm

BALS-Prd.-Nr 4400
EAN/Piece 4024941044004
Packaging Unit 10   Piece
 to documents downloads


Product description

BALS-Prd.-Nr 4400
EAN 4024941044004
Product category ELV plug
Current 63A
Number of poles 3p
Arangement of phases 3P
Position of earth contact 12 h
Voltage 40 up to 50V
Frequency 50/60Hz
Protection degree IP44
Colour code grey RAL 7035
Colour of appliance Cable gland grey RAL 7035
Enclosure grey RAL 7035
Connection design with screw terminal
Maximum conductor size 16,0 qmm
Cable entry with cable gland

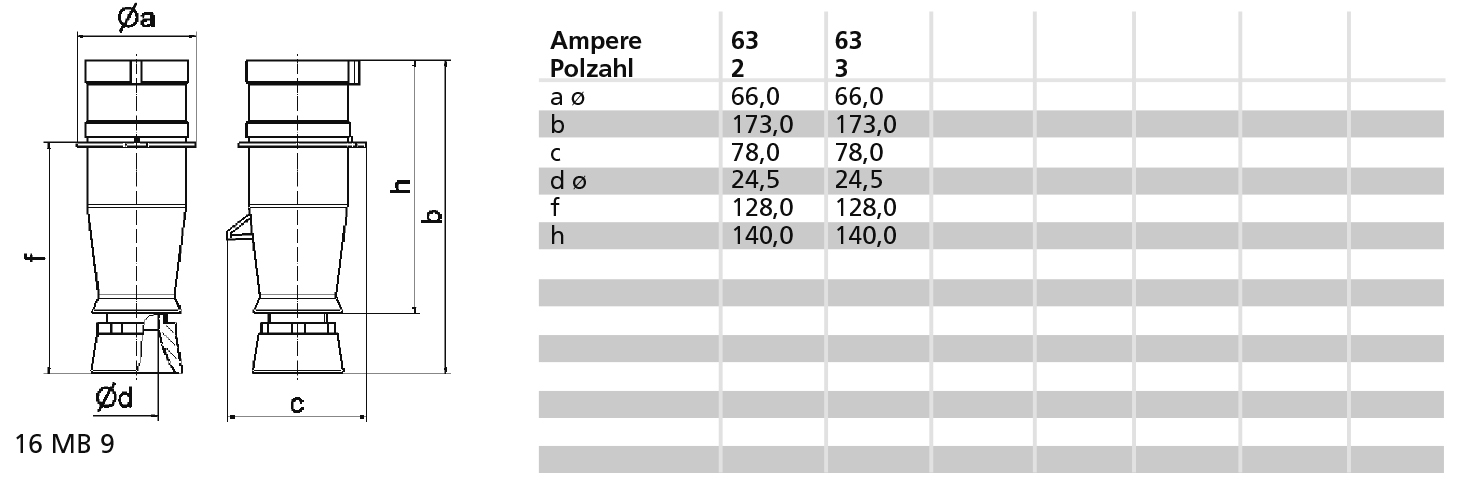

Height 173mm
Width 66mm
Depth 78mm
Material of enclosure Polyamide
Contacts The contact carrier is made of high temperature resistant material
the contacts are brass nickel plated

Additional technical information

For cable diameter up to max. 24,5 mm
With cable gland

Logistics data

Weight/pcs 0.25 kg / Piece
Packaging Bag
Content amount 1 ST
EAN 4024941044004
Length 410 mm
Width 285 mm
Weight 0.251 kg
Packaging Carton
Content amount 10 ST
EAN 4024941935661
Length 275 mm
Width 175 mm
Height 137 mm
Weight 2.625 kg
Volume 5,737.5 ccm
  • Further technical article descriptions on request.
